SES320-2400 Insulating Oil Purifier

This van mounted mobile 2400 GPH transformer dry-out and oil conditioning system is a complete high capacity transformer service package. Take a look at the specs below.

Image is not available
SES320-2400 Insulating Oil Purifier

This van mounted mobile 2400 GPH transformer dry-out and oil conditioning system is a complete high capacity transformer service package. Take a look at the specs below.

Image is not available
Slider

The SESCO SES320 series of insulating oil conditioning and regeneration systems have been manufactured for more than 30 years and can be found in the power generation, transmission, distribution and transformer manufacturing industries world-wide. The SES320 family of oil purifiers are used to condition new and recondition in service  insulating fluids for use in high voltage electrical equipment. The SES320R incorporates an optional adsorbent treatment stage to add oil regeneration capability to the SESE320.

All SES320 models are designed to “single pass” oil processing performance standards to accommodate all transformer maintenance and commissioning requirements. The SES320-2400  has a maximum flow capacity of 2520 gallons per hour. The SES320-2400 is fully customizable and available in a stationary skid and numerous mobile configurations.

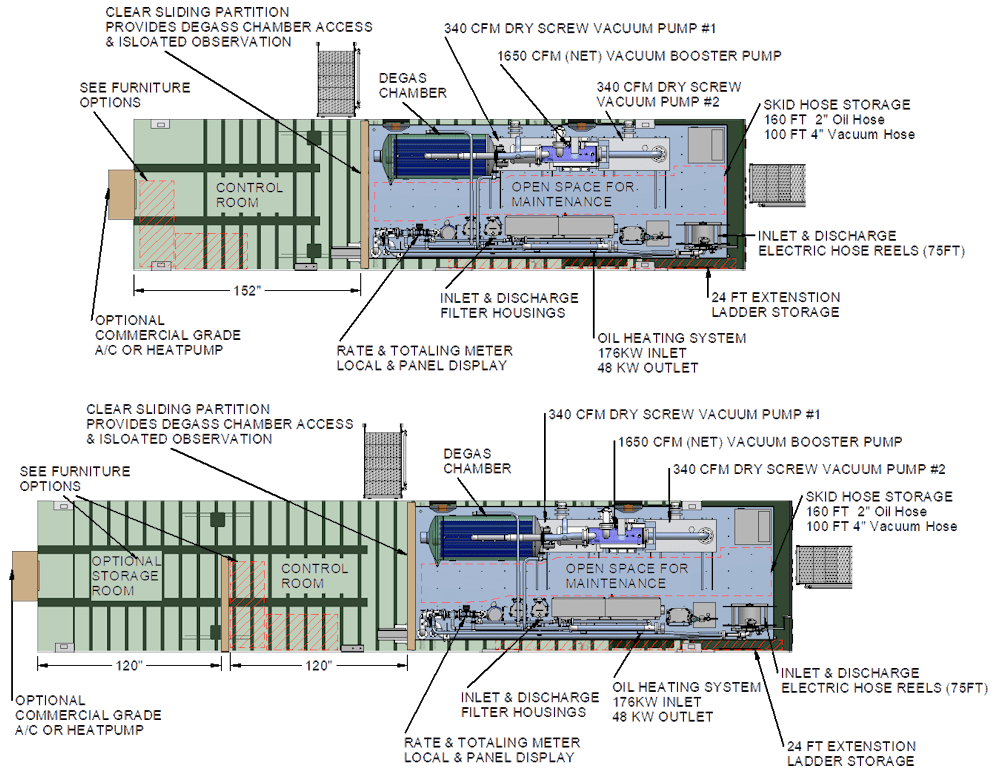

SES320 2400 QuickShip Layout 1000x618 min





ConfigurationTable min



Mineral Oils

The SES320(R) is designed to worst case single pass performance standards for mineral oil. The dissolved water saturation level is 90-100 ppm at typical ambient temperatures.

Natural Ester Fluids

The flow capacity of the SES320(R) must be de-rated by 25% when processing Natural Ester Dielectric Fluids. At least two passes are recommended.

Synthetic Ester Fluids

The flow capacity of the SES320(R) must be de-rated by 25% when processing Synthetic Ester Dielectric Fluids. At least two passes are recommended.

Mineral Oils

Natural Ester Fluids

Synthetic Ester Fluids

The SES320(R) is designed to worst case single pass performance standards for mineral oil. The dissolved water saturation level is 90-100 ppm at typical ambient temperatures.

The flow capacity of the SES320(R) must be de-rated by 25% when processing Natural Ester Dielectric Fluids. At least two passes are recommended.

The flow capacity of the SES320(R) must be de-rated by 25% when processing Synthetic Ester Dielectric Fluids. At least two passes are recommended.
